About the Reference Frame Feature
This feature allows users to define the origin and direction of the X and Y-axes within the physical workspace.

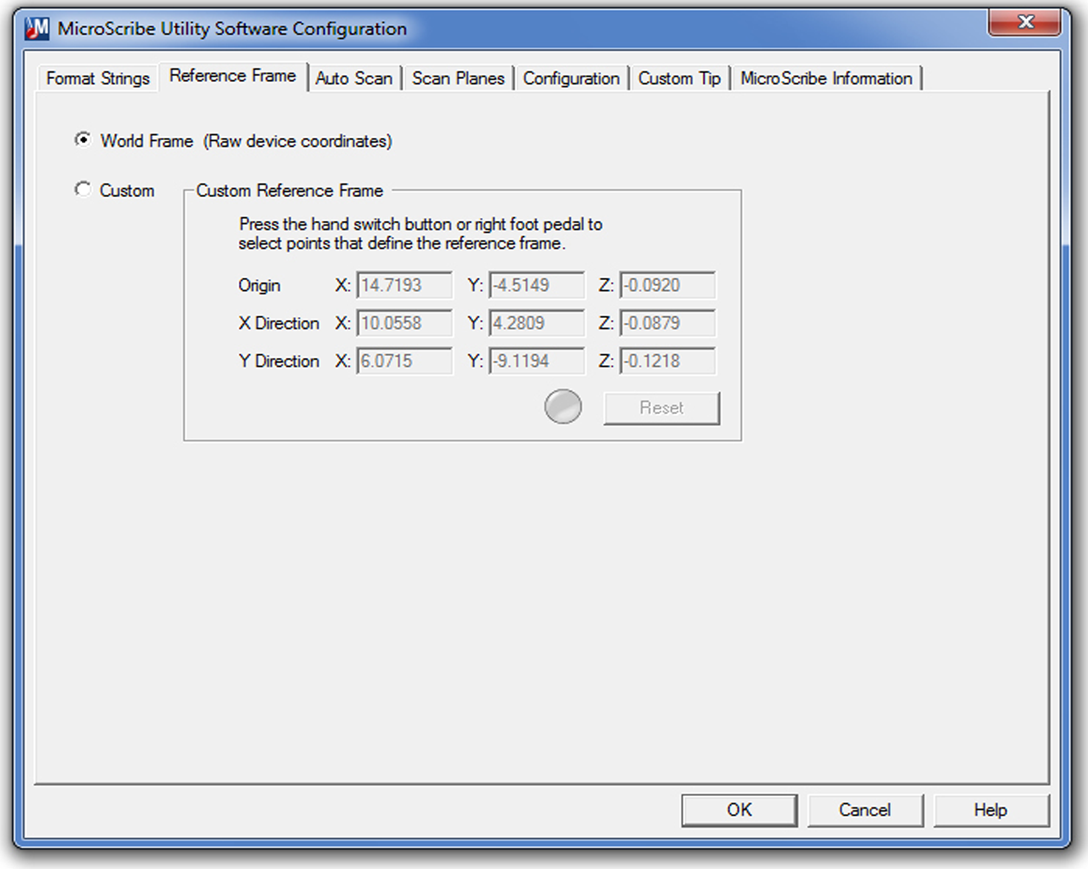

Click on the Reference Frame icon . The Reference Frame tab will be displayed.
By default the World Frame option will be selected. This means no custom Reference Frame is being used.
