About the Auto Scan Feature
About the Auto Scan Feature
This feature allows users to capture data at defined intervals of distance or time. With Auto Scan enabled, there is no need to click the input device for each point that is desired. Data will stream from the MicroScribe at specified intervals, which is ideal for uniformly spacing points along a curve. In previous versions of MicroScribe Utility Software, this feature was called Auto Plot.

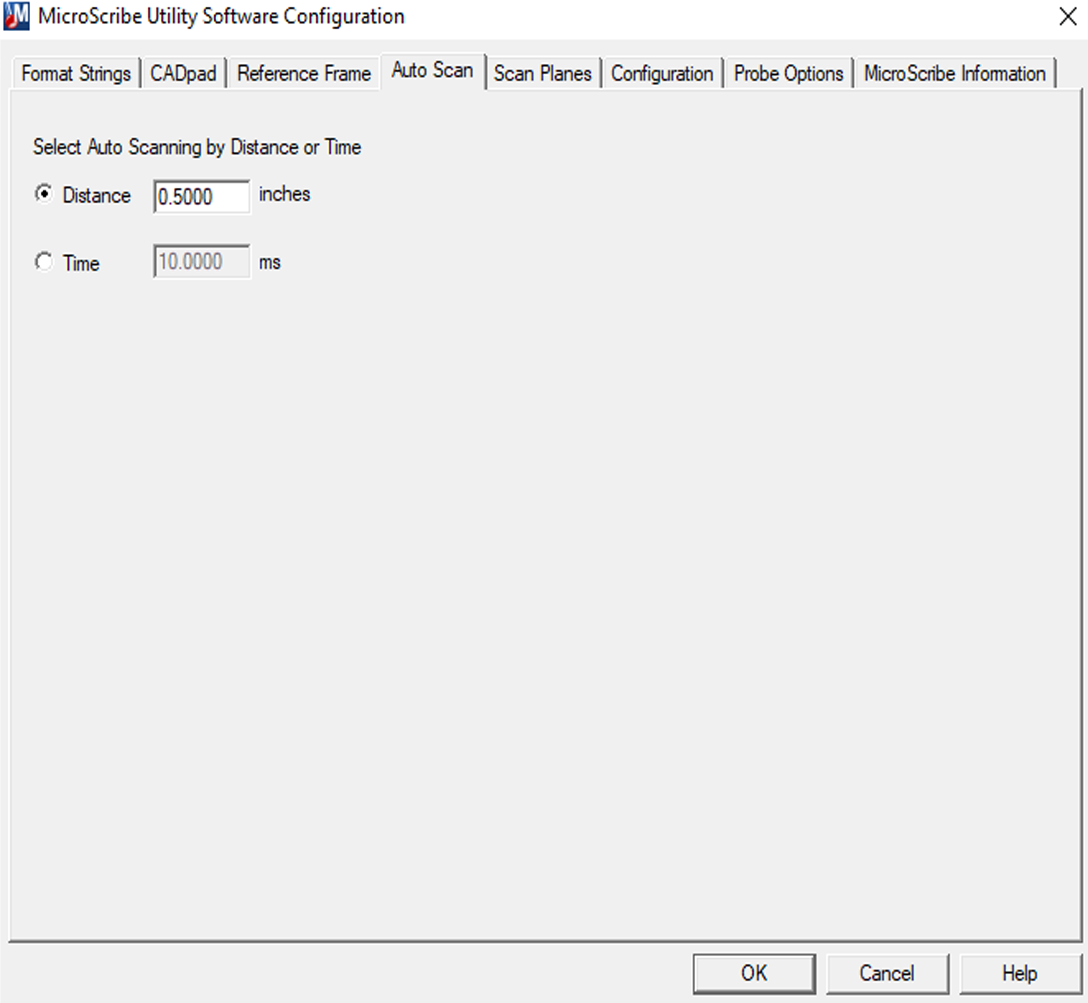

To view the options for this feature click on the Auto Scan icon .
